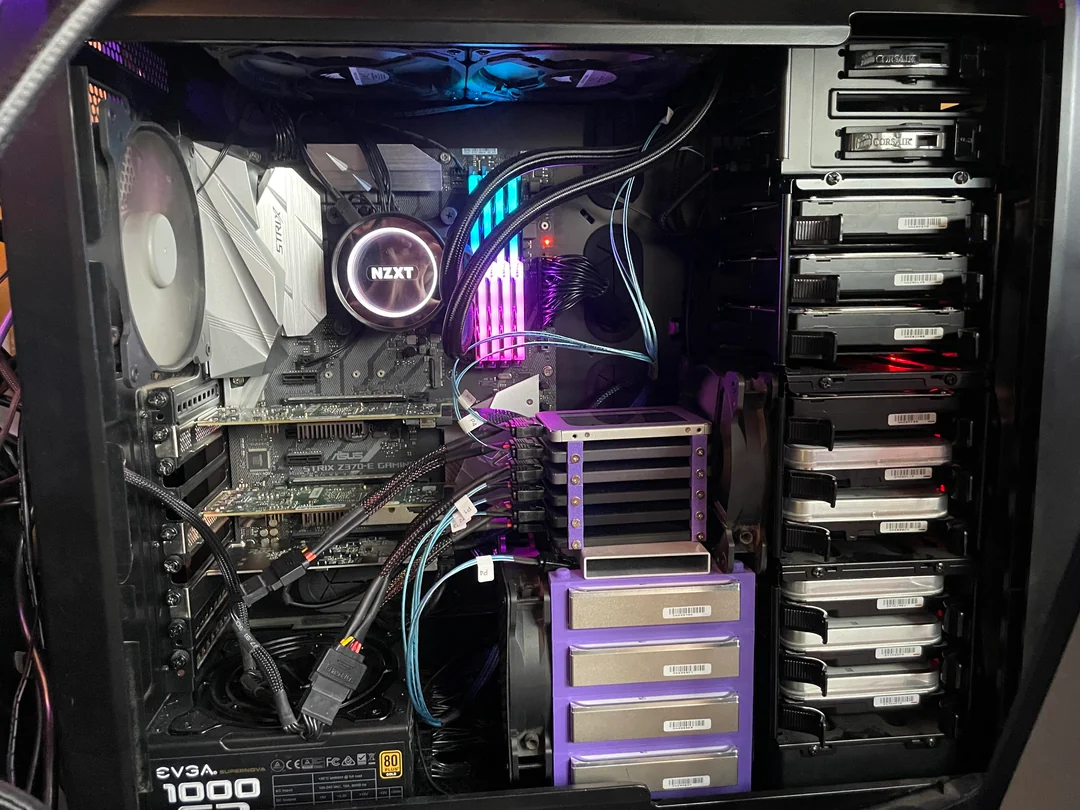

As a home lab enthusiast, I want my servers to perform at their best while also considering energy efficiency.
When evaluating the energy efficiency of RAID-like storage technologies, key factors include active drive count, redundancy overhead, workload patterns, drive sleep capabilities, and file system efficiency. Below is a structured analysis of technologies and configurations, tailored to different storage media (SATA HDD, NVMe SSD, etc.) and file systems.
Key Energy Efficiency Factors
- Active Drive Count: More active drives = higher power consumption.
- Redundancy Overhead: Parity calculations (RAID 5/6) or mirroring (RAID 1/10) increase writes, raising power use.
- Drive Sleep: Technologies allowing unused drives to spin down (e.g., Unraid) save energy.
- Workload Type: Sequential vs. random I/O affects drive activity duration.
- Drive Type Power Use:
- SATA HDD: 10–20W active, 5–10W idle.
- SATA/SAS SSD: 2–5W active/idle (minimal variance).
- NVMe (M.2/U.2/U.3): 5–15W active, 1–3W idle.
- File System Impact: ZFS/Btrfs add CPU/GPU overhead for parity/checksums but may reduce disk I/O via compression.
RAID Levels & Alternatives: Performance vs. Power
| Technology | Redundancy | Drive Count | Read Performance | Write Performance | Power Use (SATA HDD) | Power Use (NVMe) | Best Use Case |
|---|---|---|---|---|---|---|---|
| Single Drive | None | 1 | Low | Low | 10–20W | 5–15W | Minimalist setups. |
| RAID 0 (Stripe) | None | ≥2 | High (×N) | High (×N) | 20–40W+ | 10–30W+ | Performance-critical, non-critical data. |
| RAID 1 (Mirror) | 1 disk | 2 | Medium (×1) | Low (×0.5) | 20–40W | 10–30W | Small redundancy, moderate performance. |
| RAID 5 | 1 parity | ≥3 | High (×N-1) | Medium (×0.5N) | 30–60W | 15–45W | Balanced storage, moderate redundancy. |
| RAID 6 | 2 parity | ≥4 | High (×N-2) | Low (×0.3N) | 40–80W | 20–60W | High redundancy, archival workloads. |
| RAID 10 | Mirrored Stripe | ≥4 (even) | High (×N/2) | Medium (×N/2) | 40–80W | 20–60W | High performance + redundancy (enterprise). |
| RAID 50/60 | Striped Parity | ≥6 (RAID 50) | Very High | Medium | 60–120W | 30–90W | Large-scale storage with redundancy. |
| RAID F1 | Hybrid Mirror/Parity | ≥3 | High | Medium | 30–60W | 15–45W | Flash-optimized redundancy (less common). |
| JBOD | None | ≥1 | Variable | Variable | 10–20W (per drive) | 5–15W (per drive) | Simple expansion; drives can sleep. |
| Unraid | Parity (1 drive) | ≥2 | Moderate | Moderate | 10–30W (active drives) | 5–20W (active drives) | Home NAS (spin-down friendly). |
| Synology SHR | Variable | ≥2 | Moderate | Moderate | 20–40W | 10–30W | User-friendly redundancy (similar to Unraid). |
| Btrfs/ZFS RAID | Built-in parity/mirror | ≥2 | Variable | Variable | Depends on RAID level | Depends on RAID level | Advanced users (compression/dedupe benefits). |
Drive Type Considerations
- SATA HDD:
- Pros: Cost-effective for capacity, but high power when active.
- Cons: Spinning consumes ~50% of peak power even idle. Energy savings only possible with spin-down (e.g., JBOD/Unraid).
- SATA/SAS SSD:
- Pros: Low power (active/idle similar), fast rebuilds.
- Cons: No spin-down benefit. RAID 5/6 parity still adds write overhead.
- NVMe (M.2/U.2/U.3):
- Pros: Extreme performance, low idle power.
- Cons: High active power (especially U.3 NVMe). RAID 0/1 best for performance/capacity balance.
File System Impact
- ZFS:
- Pros: Compression/dedupe reduce I/O load; checksumming improves reliability.
- Cons: High RAM/CPU use; frequent scrubs increase drive activity.
- Btrfs:
- Pros: Similar to ZFS but lighter on resources; easier to repair.
- Cons: Less mature; RAID 5/6 still experimental in some cases.
- XFS/EXT4:
- Pros: Lower overhead, ideal for simple RAID arrays.
- Cons: No built-in redundancy or compression.
Recommendations
Most Energy-Efficient
- Unraid/JBOD (SATA HDD/SSD):
- Allows unused drives to spin down. Unraid’s parity protects against single-drive failure.
- Synology SHR (SATA SSD):
- Balances redundancy and efficiency with Synology’s optimized firmware.
- Btrfs RAID 1 (NVMe):
- Mirroring avoids parity overhead; NVMe low idle power.
Best Performance/Watt
- RAID 10 (NVMe): High throughput for databases/VPS hosting.
- ZFS RAID-Z1 (SAS SSD): Dedupe/compression reduce I/O; SAS efficiency in enterprise setups.
Avoid for Energy Efficiency
- RAID 5/6 with SATA HDD: High rebuild times and parity overhead keep drives active.
- RAID 50/60: Too many active drives for most use cases.
Summary Table
| Technology | Energy Efficiency | Performance | Redundancy | Use Case |
|---|---|---|---|---|
| Unraid | ⭐⭐⭐⭐☆ | ⭐⭐⭐ | ⭐⭐⭐☆ | Home NAS |
| RAID 10 (NVMe) | ⭐⭐☆☆☆ | ⭐⭐⭐⭐☆ | ⭐⭐⭐⭐ | Enterprise Apps |
| Btrfs RAID 1 | ⭐⭐⭐☆☆ | ⭐⭐⭐☆ | ⭐⭐⭐ | VMs, Media |
| Synology SHR | ⭐⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐☆ | SMB/Home |
| RAID 5 (HDD) | ⭐☆☆☆☆ | ⭐⭐ | ⭐⭐⭐ | Legacy Systems |
Final Notes
- For green storage, prioritize SSD/NVMe over HDDs to reduce idle power.
- Use Unraid or JBOD for NAS setups where drives can sleep.
- For high-performance redundancy, RAID 10 (NVMe) or ZFS RAID-Z2 (SAS SSD) balance speed and reliability.
